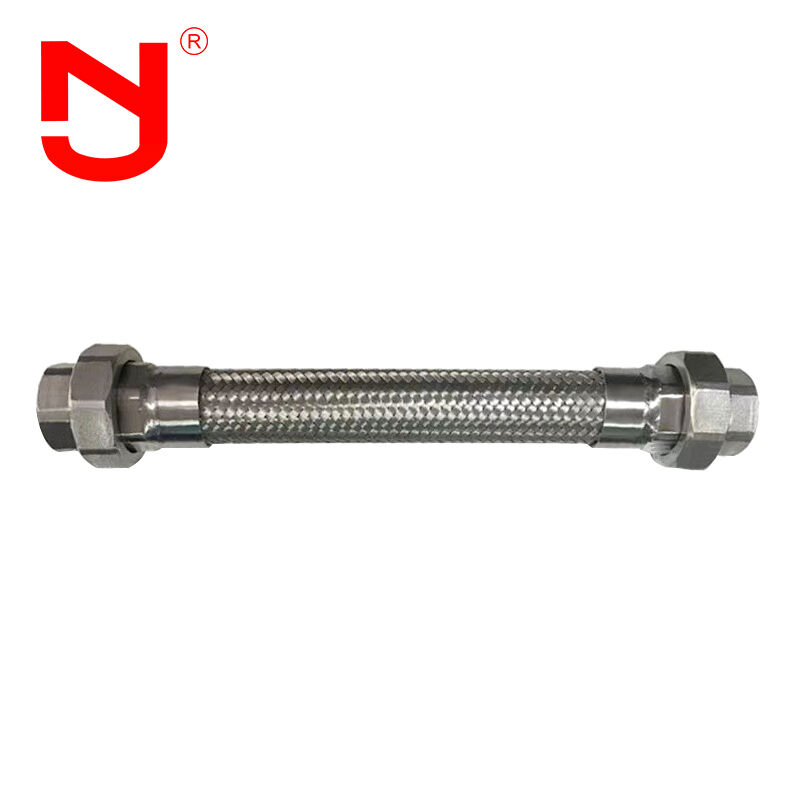

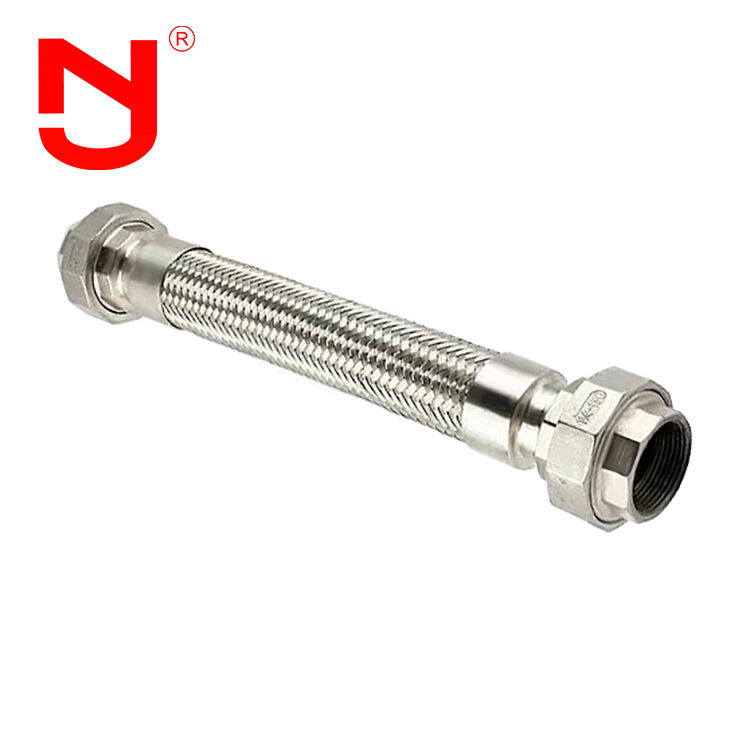

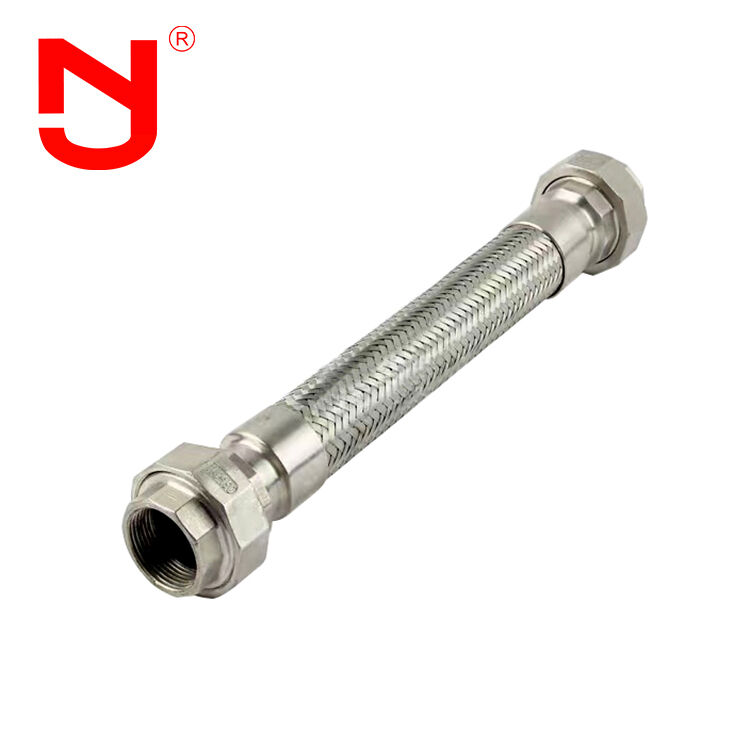

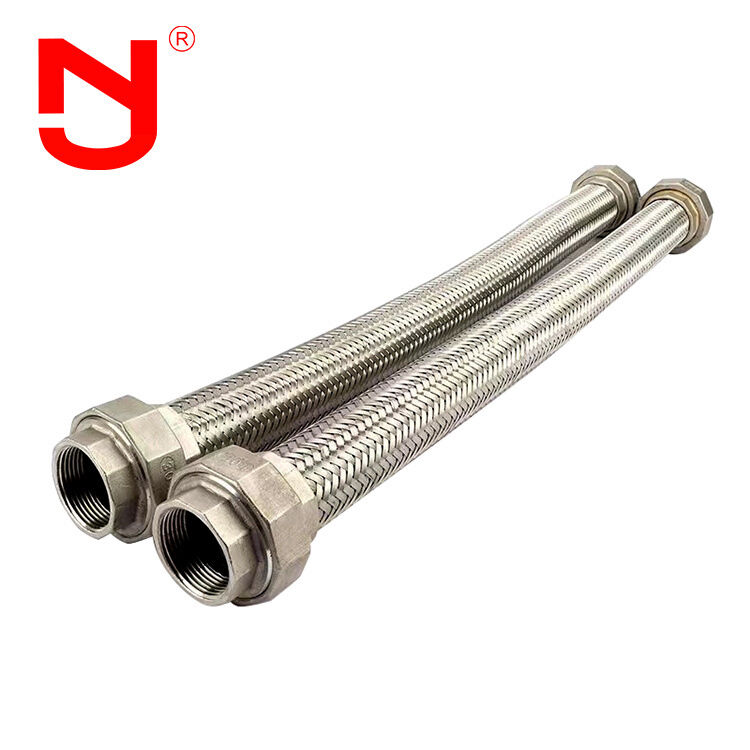

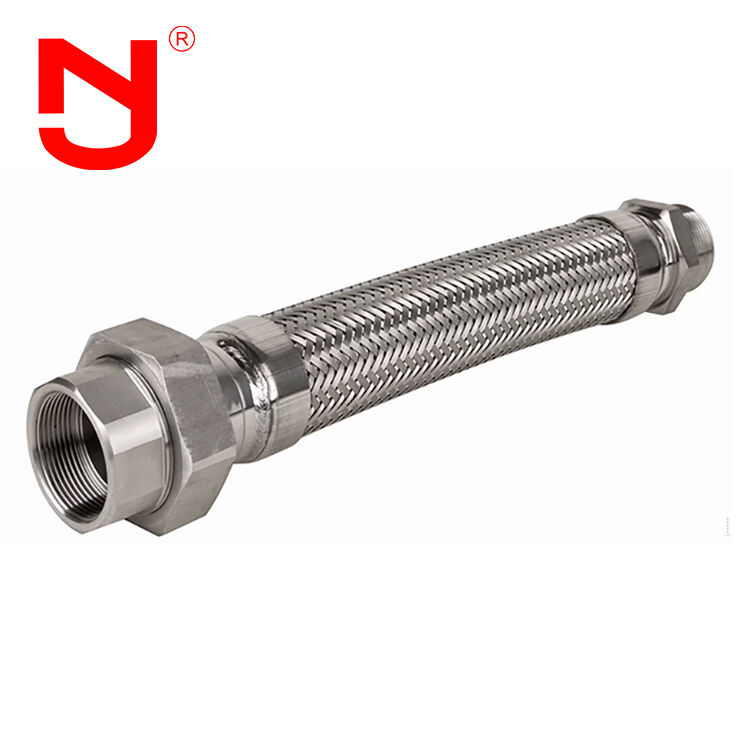

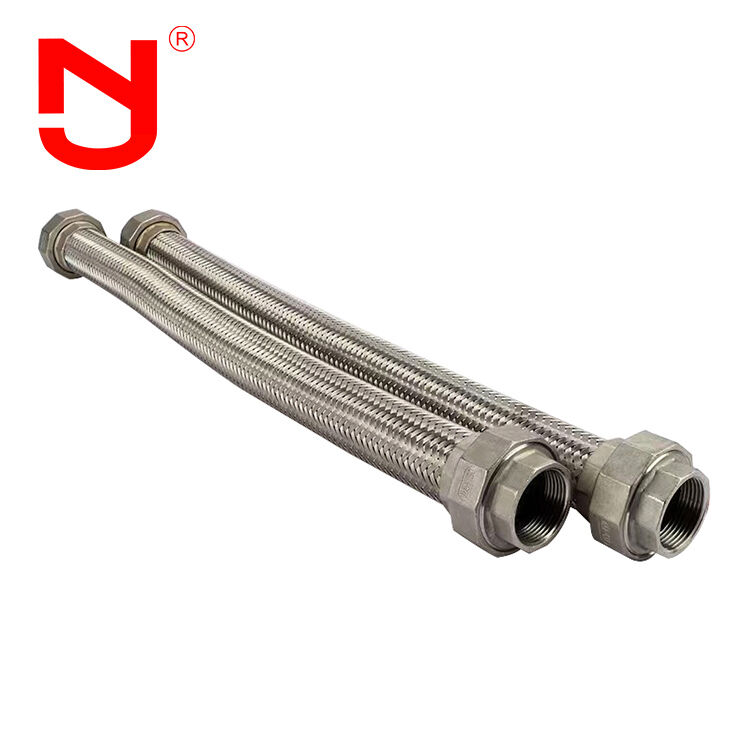

Stainless Steel Wire Braided Flexible Metal Hose Union Type
A Union Type Stainless Steel Flex Hose is a flexible piping component made from a stainless steel corrugated inner hose with stainless steel braided reinforcement, fitted with union-type end connections. It is designed to absorb vibration, compensate for thermal expansion, and correct minor misalignment in piping systems, while offering high strength, corrosion resistance, and reliable, leak-tight performance in demanding industrial applications.
Performance Characteristics
The main elastic element of flexible expansion joint is stainless steel bellows. Through the expansion and bending of bellows, the flexible expansion joint accommodates pipeline movement in axial, transverse and angular directions. Flexible expansion joint can play the following roles:
- Absorbs axial, transverse and angular thermal deformation of the pipeline
- Reduces equipment vibration impact on pipeline systems
- Compensates for pipeline deformation caused by earthquake and land subsidence
Technical Parameters
Metal Hose Specifications
| Diameter (mm) |
Pressure Grade (Mpa) |
Available Area of Bellows (c㎡) |
Max External Diameter (mm) |
Length (mm) |
| 32 | 1.0/1.6/2.5 | 16 | 225 | 160-280 |
| 40 | 1.0/1.6/2.5 | 23 | 244 | 164-289 |
| 50 | 1.0/1.6/2.5 | 37 | 259 | 172-306 |
| 65 | 1.0/1.6/2.5 | 55 | 270 | 215-322 |
| 80 | 1.0/1.6/2.5 | 81 | 284 | 240-366 |
| 100 | 1.0/1.6/2.5 | 121 | 304 | 235-345 |
| 125 | 1.0/1.6/2.5 | 180 | 334 | 282-342 |
| 150 | 1.0/1.6/2.5 | 257 | 364 | 282-367 |
| 200 | 1.0/1.6/2.5 | 479 | 442 | 340-426 |
| 250 | 1.0/1.6/2.5 | 769 | 507 | 393-493 |
| 300 | 1.0/1.6/2.5 | 1105 | 562 | 464-565 |
| 350 | 1.0/1.6/2.5 | 1307 | 622 | 509-609 |
| 400 | 1.0/1.6/2.5 | 1611 | 562 | 522-628 |
| 450 | 1.0/1.6/2.5 | 1972 | 700 | 403-523 |
| 500 | 1.0/1.6/2.5 | 2445 | 760 | 431-554 |
| 600 | 1.0/1.6/2.5 | 3534 | 835 | 478-588 |
| 700 | 1.0/1.6/2.5 | 4717 | 1110 | 490-590 |
| 800 | 1.0/1.6/2.5 | 5822 | 1265 | 502-602 |
| 900 | 1.0/1.6/2.5 | 7620 | 1186 | 698 |
| 1000 | 1.0/1.6/2.5 | 9043 | 1286 | 692 |
Manufacturing Process
Union Type Metal Braided Flex Lines can be processed into different types according to different needs:
- Bellow Body Materials: Stainless Steel 304, 316L
- Flange Materials: Q235 carbon steel, 304, 316L stainless steel
Jingning has more than 17 years of design experience in manufacturing flexible expansion joints, rubber expansion joints, metal bellows joints, disassembly joints, pipelines and other industrial pipe fittings. The flexible expansion joint meets international standards such as GB, ISO, DIN, ANSI, BS, JIS and special customer requirements.
Product Advantages
- Competitive ex-factory pricing
- 17 years manufacturing experience with 5 years export experience
- Strict quality inspection exceeding industry standards
- Custom mold base and OEM specifications available
- Free samples provided
- Large inventory maintained
Applications
Due to its flexibility, pipe flex connectors can compensate for temperature differential deformation or other deformations between equipment and pipelines, prevent vibration, reduce pipeline thrust on equipment, and adapt to uneven settlement of tank foundations. Flexible expansion joints are widely used in chemical industry, oil refining, power generation, light industry, atomic energy, metallurgy, machinery, instrumentation, shipbuilding, aerospace and other sectors. With the extensive application of power pipelines and heat pipelines in industrial and civil fields, the requirements for pipe flex connectors continue to increase.
Frequently Asked Questions
Q1: Can the Union Type Stainless Steel Flex Hose be marked with customized logo?
A1: Yes, it can be marked with your logo. We provide OEM & ODM services.
Q2: What's the face to face length of Union Type Stainless Steel Flex Hose?
A2: Standard face to face lengths include L130, L152, L203. We also accept customized lengths according to your requirements.
Q3: Can you provide drawings of Union Type Stainless Steel Flex Hose?
A3: Yes, we provide technical drawings. Please contact us to receive pipe flex connector drawings.
Q4: What certificates can you provide for Union Type Stainless Steel Flex Hose?
A4: We provide CE and ISO certifications.
