Thermal Expansion Joint Bellow Compensator with Multi-Layer Bellows for Industrial Pipeline in Carbon Steel with 17 Years Manufacturing Experience

Multi-Layer Bellows Thermal Expansion Joint

Carbon Steel Bellow Compensator

17 Years Manufacturing Experience Flexible Expansion Joint

Nguồn gốc:

Trung Quốc

Hàng hiệu:

JINGNING

Chứng nhận:

CE、ZTC

Số mô hình:

JDZ

Liên hệ với chúng tôi

Yêu cầu Đặt giá

Thermal Expansion Joint Bellow Compensator with Multi-Layer Bellows for Industrial Pipeline in Carbon Steel with 17 Years Manufacturing Experience

Thông tin chi tiết sản phẩm

Từ khóa:

Khớp giãn nở nhiệt

Tên sản phẩm:

Khớp giãn nở nhiệt Khớp nối giãn nở linh hoạt cho đường ống công nghiệp

Áp suất làm việc:

0---6.0Mpa

OEM & ODM:

ủng hộ

Vật liệu mặt bích:

thép không gỉ, thép carbon

Vật mẫu:

Miễn phí

Loại công ty:

nhà máy

Sự liên quan:

mặt bích

Điều khoản thanh toán & vận chuyển

Số lượng đặt hàng tối thiểu

Giá bán

$9.2~91.2/pc

chi tiết đóng gói

hộp gỗ

Thời gian giao hàng

5-8 ngày

Điều khoản thanh toán

, L/C, D/A, D/P, T/T, Liên minh phương Tây, Moneygram

Khả năng cung cấp

10000pcs

NHỮNG SẢM PHẨM TƯƠNG TỰ

Thermal Expansion Joint Bellow Compensator with Multi-Layer Bellows for Industrial Pipeline in Carbon Steel with 17 Years Manufacturing Experience

Nhận giá tốt nhất

video

Corrosion Resistant SS316 Exhaust Expansion Joint with Vibration Resistance and Thermal Expansion Compensation

Nhận giá tốt nhất

video

SS316 Metal Expansion Joint with High Temperature Resistance and Flange Standard DIN/ANSI/JIS/BS for Industrial Applications

Nhận giá tốt nhất

video

SS316 Metal Expansion Joint with Thermal Expansion Compensation and Axial Movement for Industrial Applications

Nhận giá tốt nhất

Liên hệ với chúng tôi

86-150-93112546

joints@chnflex.com

Liên hệ ngay

Mô tả sản phẩm

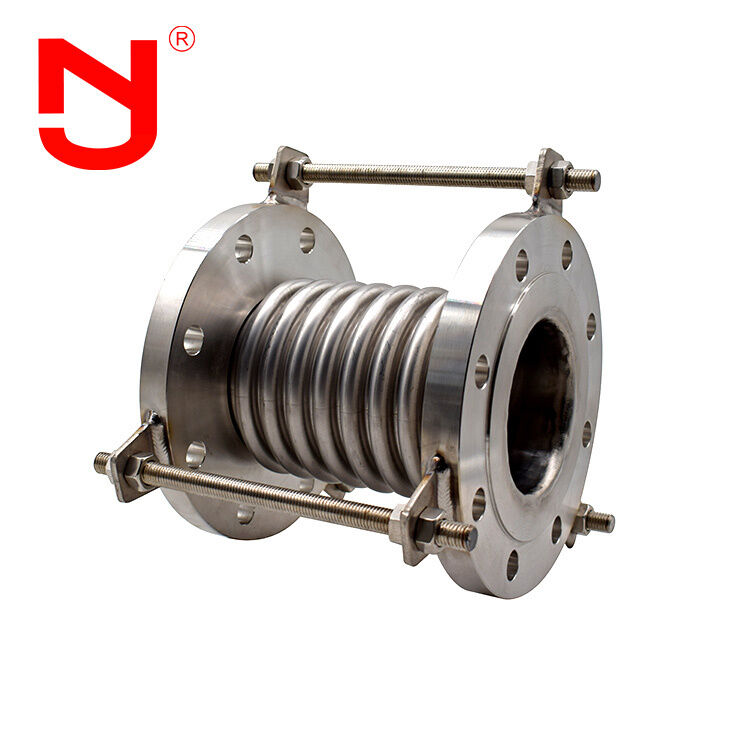

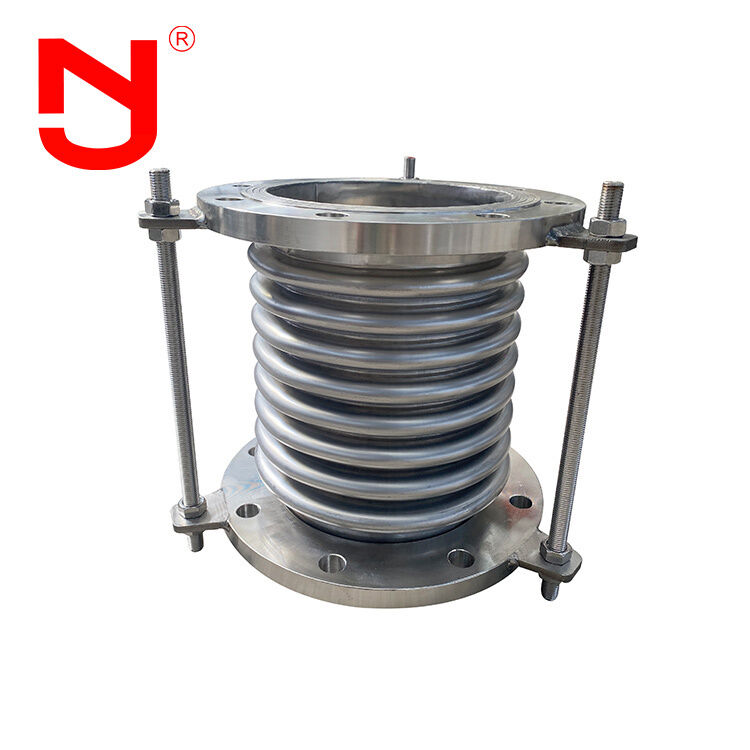

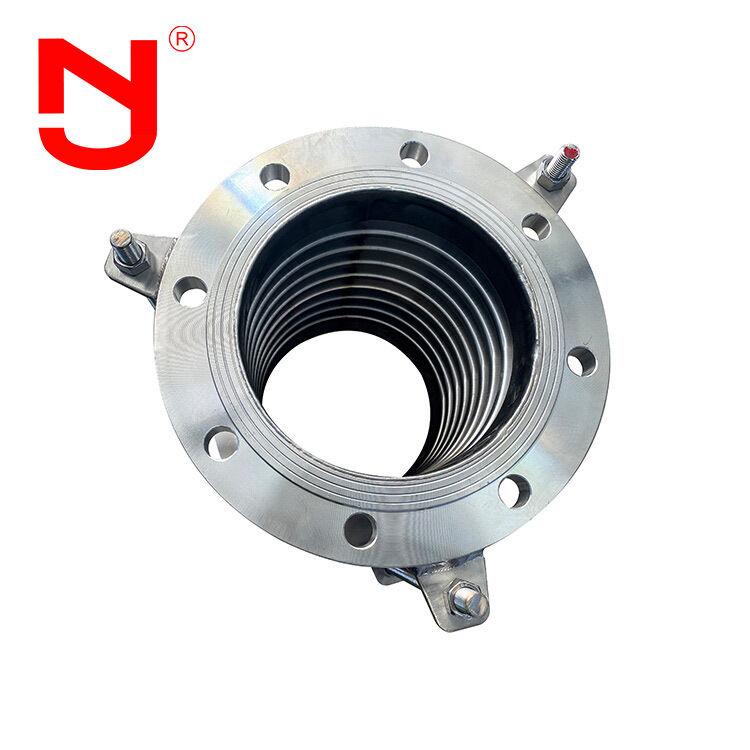

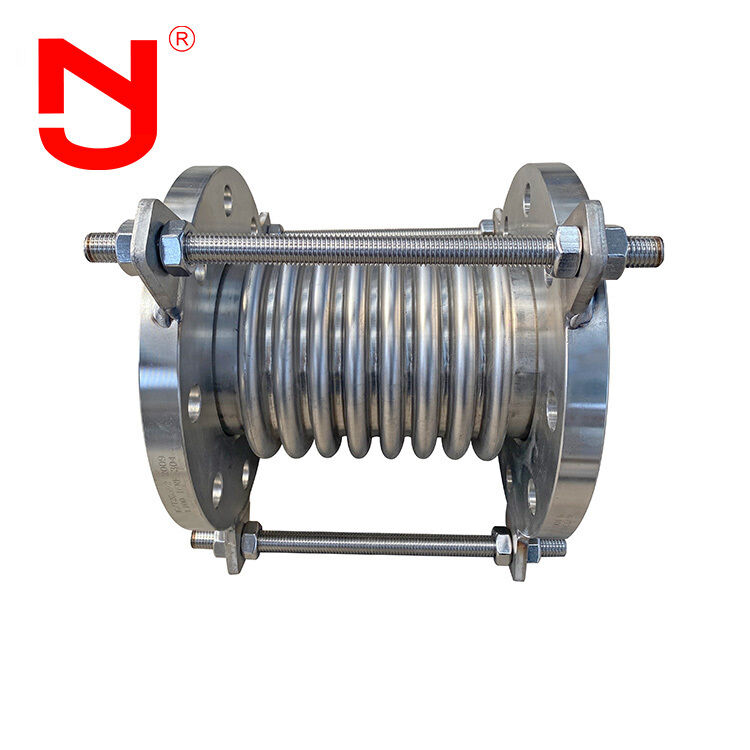

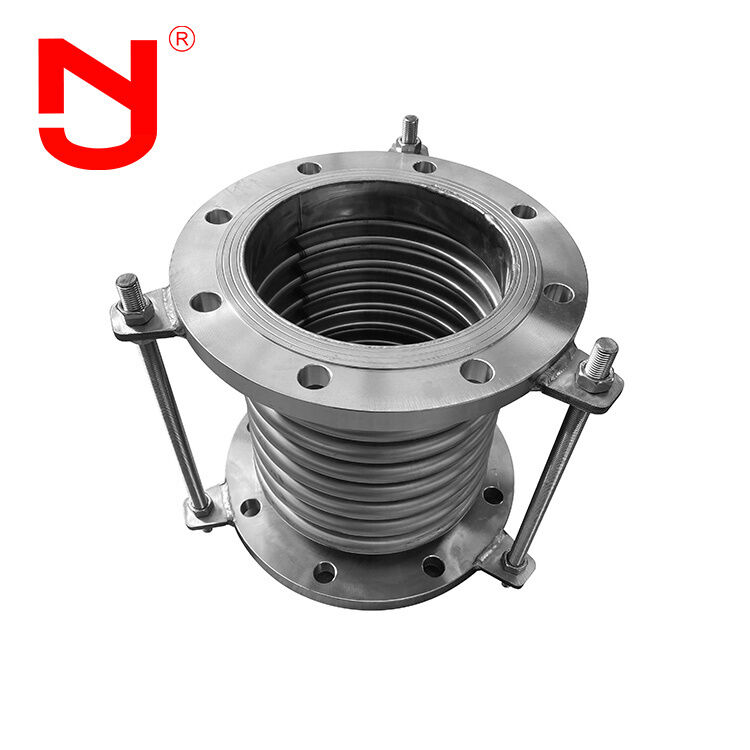

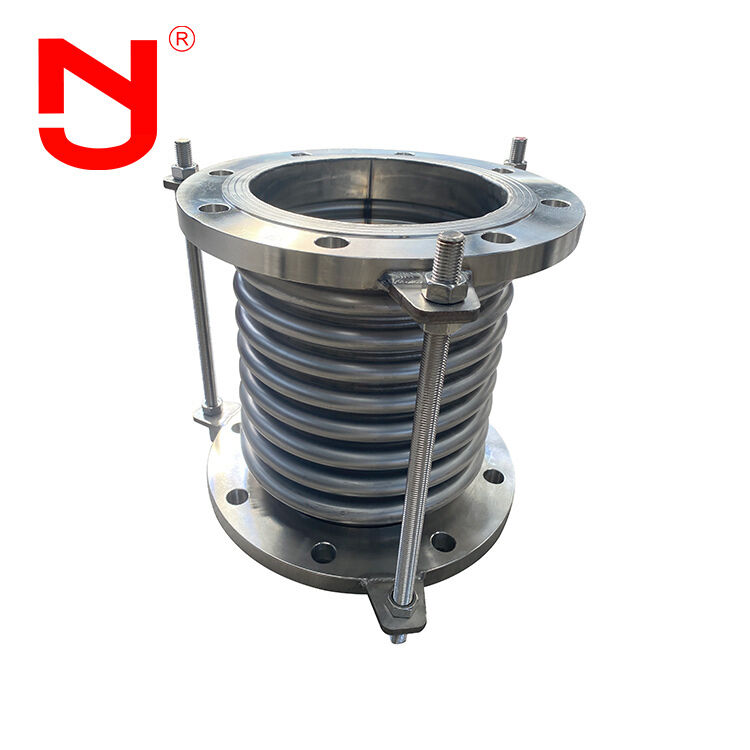

Thermal Expansion Joint Bellow Compensator

This flexible expansion joint is designed to absorb thermal movement, vibration, and mechanical stress in industrial pipeline systems. Featuring a multi-layer bellows structure, it provides excellent adaptability to axial, lateral, and angular displacement, protecting pipelines from damage caused by temperature changes and dynamic loads.

Key Performance Features

Absorbs axial, transverse and angular thermal deformation
Reduces equipment vibration impact on pipelines
Compensates for pipeline deformation from seismic activity
Protects against damage from land subsidence

Technical Specifications

Diameter (mm)	Pressure Grade (Mpa)	Available Area (c㎡)	Max External Diameter (mm)	Length (mm)
32	1.0/1.6/2.5	16	225	160-250/264-280
40	1.0/1.6/2.5	23	244	164-259/269-289
50	1.0/1.6/2.5	37	259	172-276/282-306
65	1.0/1.6/2.5	55	270	215-294/300-322
80	1.0/1.6/2.5	81	284	240-338/344-366
100	1.0/1.6/2.5	121	304	235-317/323-345
125	1.0/1.6/2.5	180	334	282-314/316-342
150	1.0/1.6/2.5	257	364	282-339/338-367

Manufacturing Process

Our thermal expansion joints are manufactured to meet international standards including GB, ISO, DIN, ANSI, and BS. With 17 years of design experience, we offer customized solutions for various industrial applications.

Material Options

Bellow Body: Stainless Steel 304, 316L
Flange Materials: Q235 carbon steel, 304, 316L stainless steel

Product Advantages

Competitive factory direct pricing
17 years manufacturing experience with 5 years export experience
Strict quality control exceeding industry standards
Custom mold base and OEM services available
Free samples available
Large inventory for quick delivery

Applications

Our flexible expansion joints are widely used in chemical processing, oil refining, power generation, light industry, nuclear facilities, metallurgy, machinery, instrumentation, shipbuilding, and aerospace applications. They compensate for temperature differentials, prevent vibration, reduce pipeline thrust on equipment, and accommodate foundation settlement.

Frequently Asked Questions

Q: Can the Thermal Expansion Joint be marked with customized logo?

A: Yes, we provide OEM/ODM services including custom branding.

Q: What's the face to face length options?

A: Standard lengths include L130, L152, L203, with custom lengths available.

Q: Can you provide product drawings?

A: Yes, we provide detailed technical drawings upon request.

Q: What certifications do you offer?

A: Our products meet CE and ISO certification standards.

Q: Are samples available?

A: Yes, we provide samples for quality evaluation.
