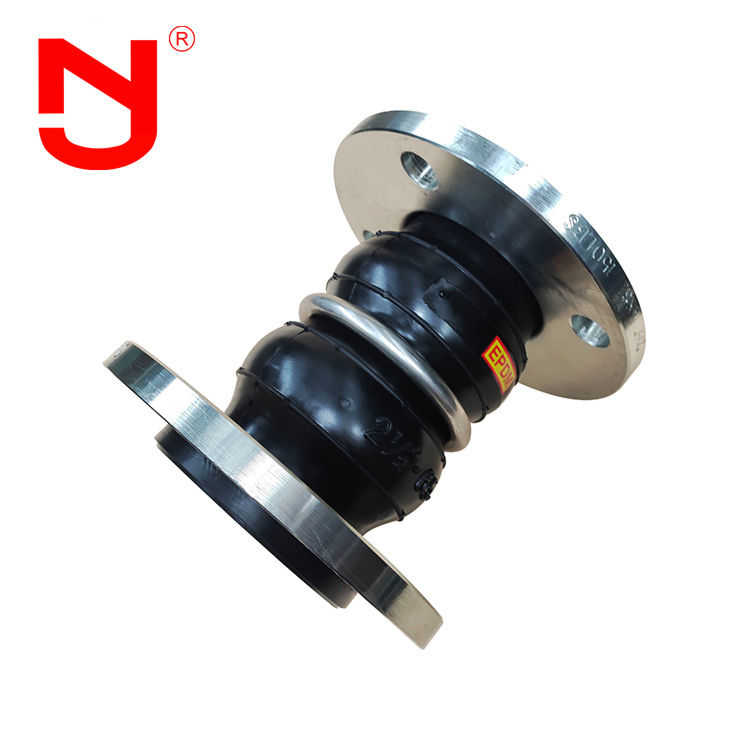

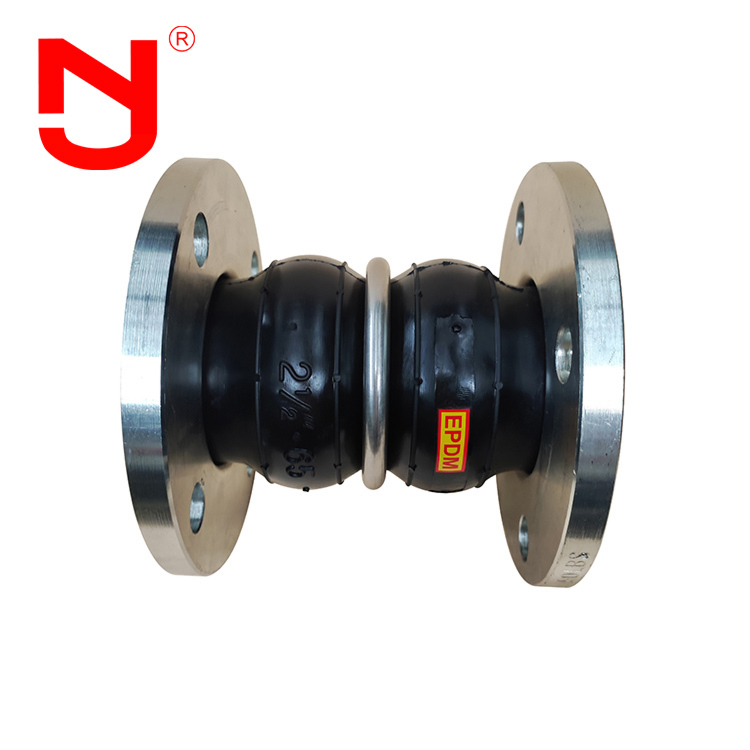

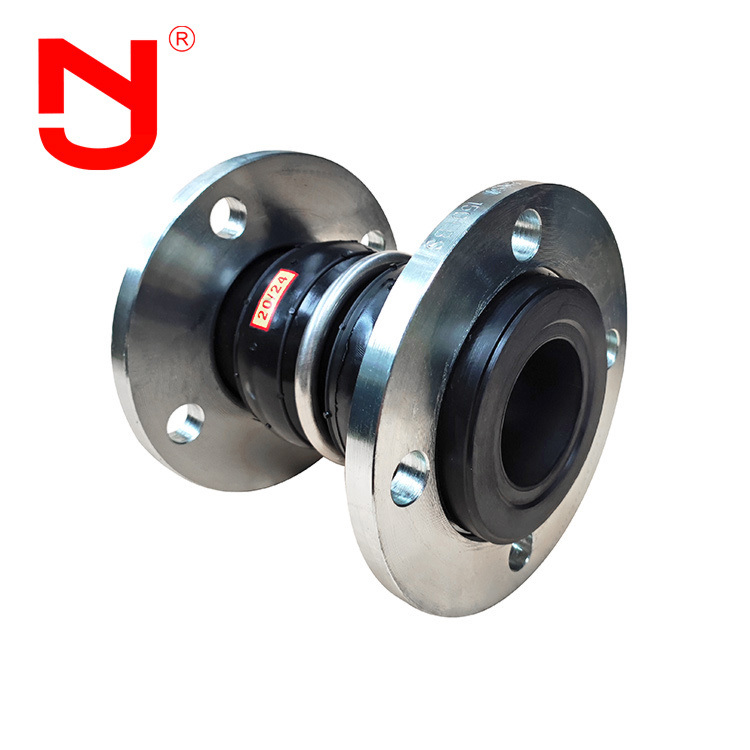

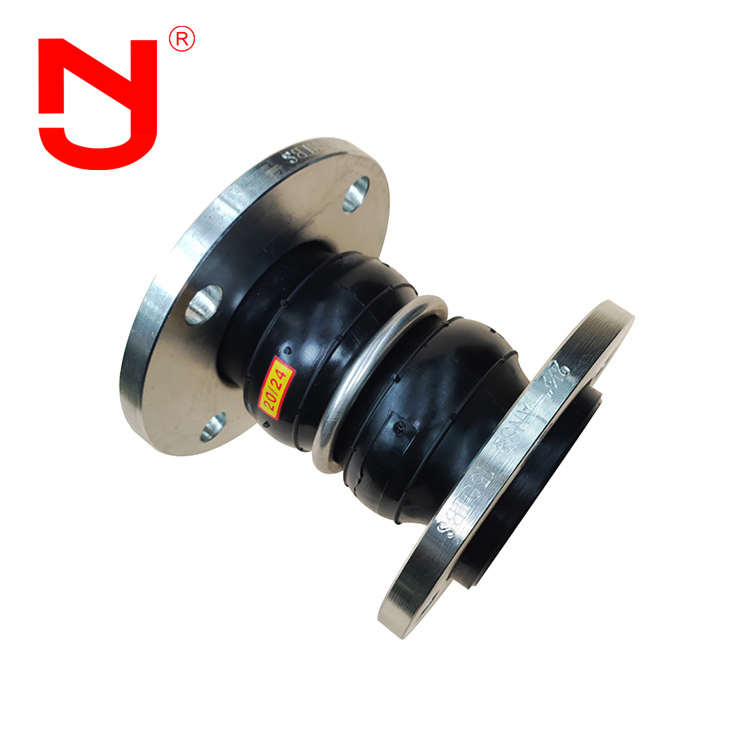

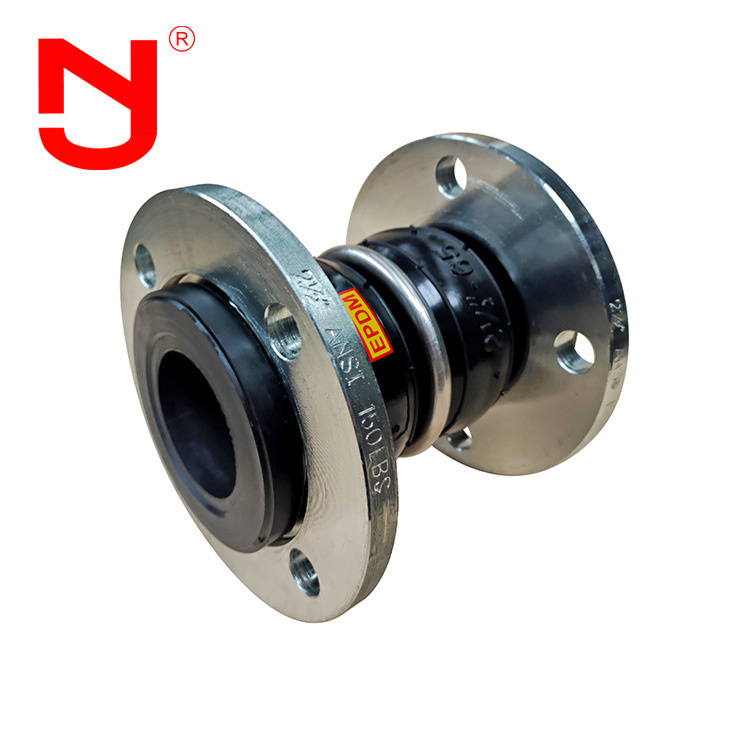

A Double Sphere Rubber Fabric Joint is a flexible piping component composed of two spherical rubber bellows reinforced with fabric layers, designed to accommodate multi-directional movements (axial, lateral, and angular) in piping systems while effectively absorbing vibrations, reducing noise, and compensating for thermal expansion, misalignment, and structural stresses.
EPDM expansion joint offer ultra-high performance, reliability and longevity, thus improving plant safety and the mechanical integrity of equipment. Due to the insertion of specially designed products in rigid piping systems, Joint expansion are able to:
| Nominal diameter(DN) | Length | Axial displacement(mm) | Horizontal displacement | Deflexion angle | ||
|---|---|---|---|---|---|---|
| mm | inch | mm | Extension | Compression | mm | (a1+a2) ° |
| 32 | 1 1/4 | 95 | 6 | 9 | 9 | 15° |
| 40 | 1 1/2 | 95 | 6 | 10 | 9 | 15° |
| 50 | 2 | 105 | 7 | 10 | 10 | 15° |
| 65 | 2 1/2 | 115 | 7 | 13 | 11 | 15° |
| 80 | 3 | 135 | 8 | 15 | 12 | 15° |
| 100 | 4 | 150 | 10 | 19 | 13 | 15° |
| 125 | 5 | 165 | 12 | 19 | 13 | 15° |
| 150 | 6 | 180 | 12 | 20 | 14 | 15° |
| 200 | 8 | 210 | 16 | 25 | 22 | 15° |
| 250 | 10 | 230 | 16 | 25 | 22 | 15° |
| 300 | 12 | 245 | 16 | 25 | 22 | 15° |
| 350 | 14 | 255 | 16 | 25 | 22 | 15° |
| 400 | 16 | 255 | 16 | 25 | 22 | 15° |
| 450 | 18 | 255 | 16 | 25 | 22 | 15° |
| 500 | 20 | 255 | 16 | 25 | 22 | 15° |
| 600 | 24 | 260 | 16 | 25 | 22 | 15° |
Do you know how is a Double Sphere Rubber Fabric Joint made? Let's see with JINGNING.
It is very important to select the appropriate joint expansion, to understand the compatibility of the medium and the selected material of the joint expansion, the range of full temperature, full pressure and full vacuum, the amount of movement required, and the size between the pipe flanges. With this information, JINGNING application engineers can help determine the ideal joint expansion for any application.
EPDM expansion joint are widely used in various pipeline systems, such as the connection of joint expansion with pumps and valves, fire-fighting equipment and pipelines with large vibration. Pipes with frequent changes of heat and cold. Double sphere rubber expansion joint is mainly used for remote water and sewage lifting and transportation, water supply and cooling circulating water of thermal power plant, pipeline transportation of metallurgical industry, condensate water, chemical industry, cooling and dilution of petrochemical industry, and flexible connection between long and short distance pipelines in other industries. Because the double sphere rubber expansion joint has high wear resistance, joint expansion is also suitable for all industries of granular and powdery and gas low temperature.
A1: The package is carton box and strong plywooden case.
A2: 1 pc. We could delivery any quantity according to your requirements.
A3: The face to face length can be L130, L152,L203... We also could accept customized length according to your requirements.
A4: The material of flange can be carbon steel, stainless steel and ductile iron.
